API Wrappers

These wrappers provide a portable object oriented interface for networking, multithreading, GUI development, and file browsing. Programs written using them can be compiled under POSIX or MS Windows platforms without changing the code.

[top]

dir_nav



This is a set of objects that provide an easy and portable way to traverse a directory tree.

C++ Example Programs: dir_nav_ex.cpp
More Details...
#include <dlib/dir_nav.h>


Implementations:
dir_nav_kernel_1: MS Windows implementation
dir_nav_kernel_2: POSIX implementation

Extensions to dir_nav

dir_nav_extensions

This is just some miscellaneous extensions to the dir_nav component.

More Details...
[top]

gui_core



This is a set of objects and functions which provide a very basic framework for manipulating windows. It is intended to provide a portable interface which can be used to build a more complex windowing toolkit.
More Details...
#include <dlib/gui_core.h>


Implementations:
gui_core_kernel_1: MS Windows implementation
gui_core_kernel_2: X Windows implementation
[top]

gui_widgets



This component is a collection of various windowing widgets such as buttons, labels, text boxes, and so on. It also includes the drawable interface, drawable_window, and font handling objects. dlib/gui_widgets/widgets_abstract.h defines all of the high level graphical widgets provided by this component that can appear in a drawable_window. To view the specifications for the other members of this component look at dlib/gui_widgets/fonts_abstract.h, dlib/gui_widgets/drawable_abstract.h, and dlib/gui_widgets/base_widgets_abstract.h.

This component isn't actually a wrapper on top of OS APIs. Rather, it is implemented on top of the gui_core component. I put it on this page just because I expect that people would look here when searching for the sort of functionality provided by this component.

Primary widgets

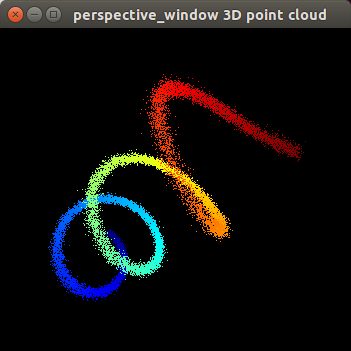

C++ Example Programs: gui_api_ex.cpp, image_ex.cpp, 3d_point_cloud_ex.cpp, surf_ex.cpp, bayes_net_gui_ex.cpp
#include <dlib/gui_widgets.h>
[top]

misc_api



This is just a collection of miscellaneous APIs that were small/simple enough not to warrant their own module.
More Details...
#include <dlib/misc_api.h>


Implementations:
misc_api_kernel_1: MS Windows implementation
misc_api_kernel_2: POSIX implementation
[top]

sockets



This is a set of objects that provides an easy to use and object oriented interface for dealing with TCP networking. There are currently two implementations, one for UNIX and another for all versions of Windows after Windows95. Both provide the exact same interface so programs written with them can be recompiled on either platform without a problem.

You also may want to take note of the timeout object. It provides a mechanism which you can use to add a timeout to a network operation.



C++ Example Programs: iosockstream_ex.cpp, sockets_ex.cpp, sockstreambuf_ex.cpp, server_http_ex.cpp, server_iostream_ex.cpp
More Details...
#include <dlib/sockets.h>


Implementations:
sockets_kernel_1: MS Windows implementation
sockets_kernel_2: POSIX implementation

Extensions to sockets

sockets_extensions

This is just some miscellaneous extensions to the socket api.

More Details...
[top]

threads



This is a set of objects that provides an easy to use and object oriented interface for creating multi-threaded programs. There are currently two implementations, one for UNIX and another for any variant of MS Windows after Windows 95. Both provide the exact same interface so programs written with them can be recompiled on either platform without a problem.

You also probably want to take note of the pipe object. It provides an easy to use typesafe mechanism to send messages between threads.



C++ Example Programs: threads_ex.cpp, logger_ex_2.cpp, pipe_ex.cpp, multithreaded_object_ex.cpp, threaded_object_ex.cpp, thread_function_ex.cpp, thread_pool_ex.cpp
More Details...
#include <dlib/threads.h>


Implementations:
threads_kernel_1: MS Windows implementation
threads_kernel_2: POSIX implementation

Extensions to threads

async

This function behaves just like std::async() except that instead of spawning a new thread to process each task it submits the task to a dlib::thread_pool. Therefore, dlib::async() is guaranteed to use a bounded number of threads unlike std::async(). This also means that calls to dlib::async() will block if there aren't any free threads in the thread pool.

More Details...
auto_mutex

This extension adds a mechanism to automatically lock and unlock a mutex. Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.


C++ Example Programs: threads_ex.cppMore Details...
auto_mutex_readonly

This extension adds a mechanism to automatically perform a readonly lock and unlock of a read_write_mutex. Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.

More Details...
auto_unlock

This extension adds a mechanism to automatically unlock a mutex. Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.

More Details...
auto_unlock_readonly

This extension adds a mechanism to automatically remove a readonly unlock from a read_write_mutex. Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.

More Details...
create_new_thread_extension

This extension adds some templated overloads to the create_new_thread() function. They allow you to create new threads using member functions from a class. Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.

More Details...
default_thread_pool

This function returns a reference to a global thread_pool. If the DLIB_NUM_THREADS environment variable is set to an integer then the thread pool will contain DLIB_NUM_THREADS threads, otherwise it will contain std::thread::hardware_concurrency() threads.

More Details...
multithreaded_object

This object represents a multithreaded object. It is similar to the threaded_object except it allows you to have many threads in a single object rather than just one.


C++ Example Programs: multithreaded_object_ex.cpp, pipe_ex.cppMore Details...
parallel_for

This is a set of functions for executing the contents of a for loop in parallel. It is useful for taking advantage of multi-processor systems.


C++ Example Programs: parallel_for_ex.cppMore Details...
read_write_mutex

This extension adds a mutex object that can perform both normal "write locks" as well as "readonly locks". See the specification for details. Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.

More Details...
rmutex

This extension adds a mutex object that can handle recursive calls to lock(). Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.

More Details...
rsignaler

This extension adds a signaler object that can be used with the rmutex object. Also note that this extension is included by dlib/threads.h so you don't have to include anything extra to get it.

More Details...
threaded_object

This extension represents a simple threaded object. It provides a convenient mechanism to create an object that contains a thread.


C++ Example Programs: threaded_object_ex.cppMore Details...
thread_function

This object represents a thread on a global C++ function. That is, it allows you to run a global function in its own thread.


C++ Example Programs: thread_function_ex.cppMore Details...
thread_pool

This object represents a fixed size group of threads which you can submit tasks to and then wait for those tasks to be completed. It also provides a future object that provides a container which allows you to safely pass objects into the tasks.

The implementation of this extension can be found here. It is implemented such that no memory allocations occur after the thread pool has been constructed so long as the user doesn't call any of the add_task_by_value() routines. The future object also doesn't perform any memory allocations or contain any system resources such as mutex objects.


C++ Example Programs: thread_pool_ex.cppMore Details...
thread_specific_data

This extension adds the ability to easily create thread specific data.

More Details...
